Beskrivelse

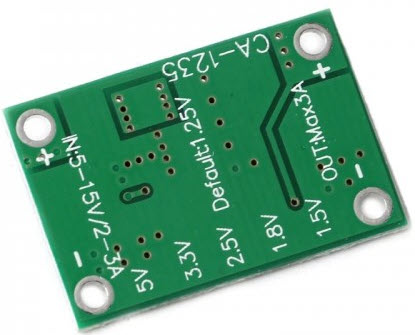

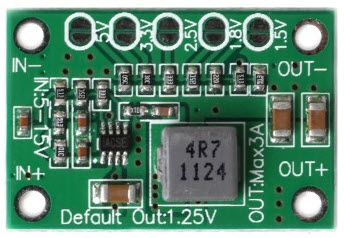

DC Buck Step Down Power Converter Board 5-16V To 1.25V 1.5V 1.8V 2.5V 3.3V 5V 3A
Description:
This is super mini DC-DC step down voltage converter module supporting DC 5-16V input and 1.25V/1.5V/1.8V/2.5V/3.3V/5V fixed voltage output. On-board MP1495 buck chip with high power conversion efficiency up to 90%, save energy. Unique short-connecting voltage adjustment design ensure output accuracy better performance than the potentiometer type voltage converter module.
Features:
Mini DC-DC step down regulated voltage converter module with DC 5-16V input and 1.25V/1.5V/1.8V/2.5V/3.3V/5V fixed voltage output
n-board MP1495 buck chip with high power conversion efficiency up to 90%, save energy

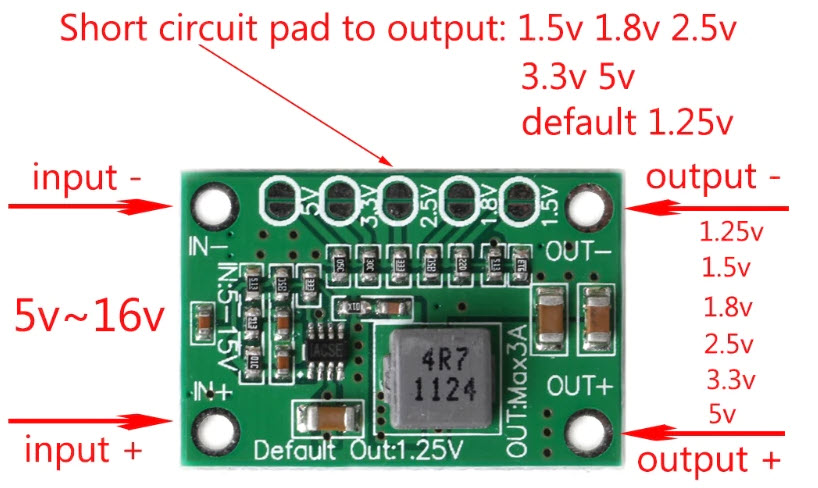

Unique short-connecting voltage adjustment design ensure output accuracy better performance than the potentiometer type voltage converter module
Specifications:
Chip: MP1495
Input Voltage: DC 5-16V
Output Voltage: 1.25V/1.5V/1.8V/2.5V/3.3V/5V(default 1.25V)
Maximum Output Current: 3A
Maximum Conversion Efficiency: 90%
Board Size: 3x2cm/1.18×0.79″ (LxW)
